1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator

شهادة
الصين Qingdao Kingway Industry Co., Ltd. الشهادات
الصين Qingdao Kingway Industry Co., Ltd. الشهادات
ابن دردش الآن

1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator

1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator
1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator 1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator 1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator 1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator 1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator 1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator

صورة كبيرة :  1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Kingway
رقم الموديل: KL1000
شروط الدفع والشحن:
الحد الأدنى لكمية: 5 وحدات
الأسعار: $2,680.00/units >=5 units

1000kw 400v 50hz 60hz 3 Phasse 4 Wire resistive load bank for testing diesel generator

وصف
النوع: مقاوم فئة الدقة: 1 كيلو واط
نطاق الجهد القابل للقياس: 380-480 فولت عامل القوى: 1.0
حمل مقاوم: 9 خطوات القوة المقاومة: 1000 كيلو واط/1000 كيلو فولت أمبير
القوة الظاهرة: 1000 كيلو واط واجهة الاتصالات: RS232 / RS485
المقاولين: (شنايدر) فتيل: ميرو
PLC: سيمنز المقاوم حليف: كينغواي
برامج معالجة البيانات: كينغواي

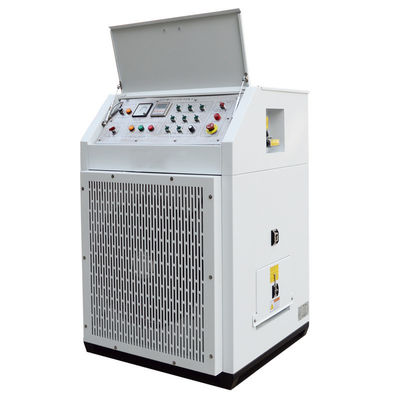

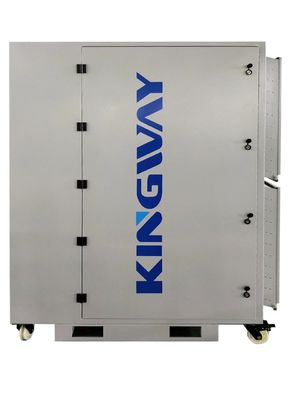

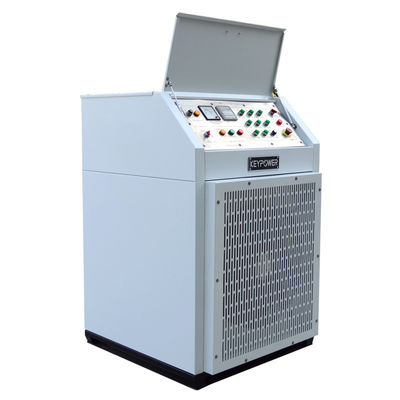

Digital AC Portable Resistive Three-Phase Load Banks

Lead times are currently less than 3 months!

Three-phase model options range from small, portable, low-power units, to high-power, indoor & outdoor permanent resistive load banks. Models come standard with push-button manual controls as well as PC software controls offering advanced load profile solutions for working with complex testing applications.  Units are suitable for various uses including testing of generators, UPS systems, data center power systems, power supplies, HVAC systems, and other critical power sources. Single-phase load bank models also available.

Design elements incorporate a robust steel outer chassis with isolated interior chambers for control and load elements. This ensures electrical components are kept away from dirt and debris for long-life reliability in harsh test environments. Portable options include lifting eyes and caster wheels while permanent and outdoor rated units are available. All resistive load banks come with multiple built-in automatic safety shutdowns and manual override shutdown.

Benefits

  • Digital metering for high-precision data read-out

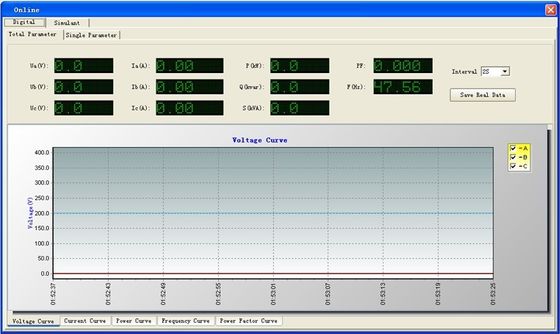

  • User controlled manually or through software with programmed load profile
  • Detailed data management, analysis, and report generation through software
  • Automatic load testing allows user to set custom periods of power and time

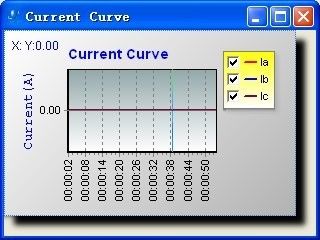

  • Display of current, voltage, power, power factor, frequency, and time
  • Emergency manual stop button for quick termination of load test
  • Automatic stop protection for adverse conditions including over-load, over-voltage, high temperature, short-circuit
  • Optional serial RS-485 Modbus controls
  • Optional dry contact terminal controls
  • Optional outdoor rated enclosures (available on models over 100kw)

Voltage Versions

 240, 400, 480  VAC

kW Models

1,2,2,5,10, 10,20,50,100 kW

Frequency

50/60 Hz

Resolution

1 kW

Configuration

Three Phase, 4 Wire Wye or 3 Wire Delta connection available
